CL60B/2

ღრმა ყინვის ლაბორატორიული საყინულეები

-15°C -42°C

მოცულობა 300 ლიტრი/ 300 ლიტრი

V

CL60B/2 Model

Capacity 300 LT + 300 LT

Structure

External structure in hot-dip galvanized steel, anti-corrosion treated and PVC film coated. Scotch-brite stainless steel internal structure.

Insulation

100 mm of insulation obtained by injection of high density polyurethane CFC-free foam for excellent product preservation and best energy saving

Door

Two self-closing solid doors, with folding magnetic gasket on four sides for perfect closing. Right hand opening or left hand on request. Optional electric digital key lock on both doors.

Internal fittings

Two separate and independent compartments standard equipped with either 3 Scotch-Brite stainless steel shelves, removable and adjustable in height or 3 Scotch-Brite stainless steel drawers, adjustable in height, with telescopic ball-bearing slides and plexiglas frontal side.

Temperature range

Setting between -15°C and -42°C in both compartments. Factory preset to -40°C. Digital adjustable with an increment of 0.1°C.

Refrigeration system

Two completely sealed, silent and highly efficient hermetic compressors and ventilated air condensers (suitable also for tropical countries). Internal static evaporators. CFC-free R452a refrigerant gas. CFC/HCFC-free R290 refrigerant gas for European countries

Defrosting

Manual defrosting cycle.

Capacity

Upper compartment: 300 litres

Lower compartment: 300 litres

Voltage

230V/50 Hz (on request 230V/60 Hz, 115V/60 Hz)

Absorption

760 Watt

Gas

CFC free R452a refrigerant gas. CFC/HCFC-free R290 refrigerant gas for European countries.

Control panel and alarms

Available:

LGK-2 digital control panel

https://www.frimed.it/en/control-panel.html#lk-2

TP-1 full touch control panel

https://www.frimed.it/en/control-panel.html#tp-1

Data logger

To record temperatures and alarms. Download data on USB pen drive.

Standard

  • 3 scotch-brite stainless steel shelves or 3 drawers in each compartment

  • Four one way wheels with stabilizing adjustable feet

  • Power cord with Schüko type plug or British type plug

  • Protection fuses (on power switch and electronic mainboard)

  • RFI filter

  • Password protected power switch and settings

  • Electronic control panel with alarm system

  • Remote contact (dry, volt-free) for alarm

  • Data logger with USB port to download readings and data

  • Memory of latest alarms visible on screen

Optional accessories

  • Internal dividers for drawers

  • Additional shelf

  • Smooth shelf with borders

  • Castors with two frontal brakes

  • Weekly temperature chart recorder working with 1,5 V battery, equipped with 52 disks and a pen

  • 12V back-up battery (LGK-2) or rechargeable batteries (TP-1 full touch)supplying energy to control panel in order to display temperature and generate alarms in case of power failure

  • GSM module to send SMS alarm messages to mobile phones, showing date, time, cabinet temperature and type of alarm (LGK-2)

  • LAN Port to connect the appliance via ethernet on PC to monitor correct functioning (LGK-2)

  • Test hole (Ø 25 mm) for external user sensor

  • Electric digital key lock (TP-1 full touch)

  • Power supply 115V/60Hz

External dimensions and unit net weight

780x840x1930 (wxdxh-mm)-kg. 224

Dimensions of packaging and shipping weight

  • carton box on pallet: 860x900x2080 (wxdxh-mm)-kg. 240

  • wooden crate (option on request): 1030x940x2210 (wxdxh-mm)-kg. 288

Equipment in accordance with:

Low voltage Directive 2014/35/UE, Electromagnetic Compatibility Directive 2014/30/UE

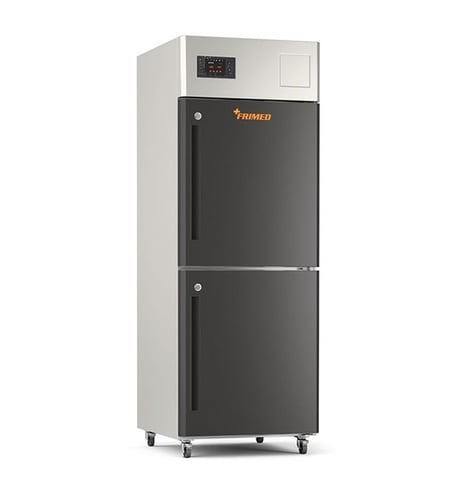

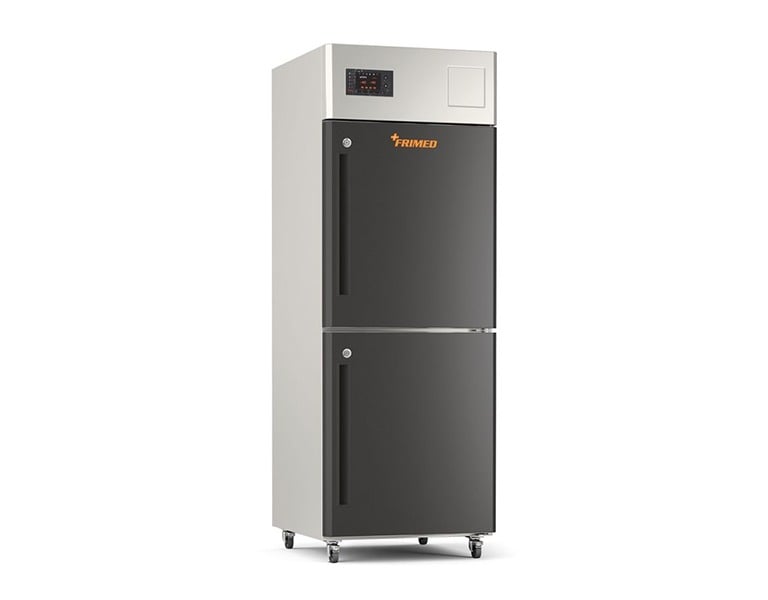

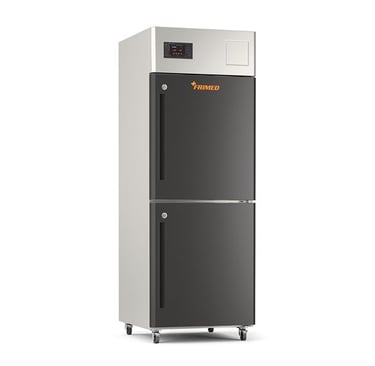

The picture doesn’t necessarily show the product in its standard version.
