AF140B

ლაბორატორიული საყინულეები

-10°C -25°C

მოცულობა 1400 ლიტრი

V

AF140B Model (-22°C)

Capacity 1400LT

Structure

External structure in hot-dip galvanized steel, anti-corrosion treated and PVC film coated. Scotch-brite stainless steel internal structure.

Insulation

60 mm of insulation obtained by injection of high density polyurethane CFC-free foam for excellent product preservation and best energy saving

Door

Self-closing solid door, with folding magnetic gasket on four sides for perfect closing. Lock with key.

Internal fittings

Standard equipped with 8 scotch-brite stainless steel shelves, removable and adjustable in height. Optional stainless steel drawers, adjustable in height, with telescopic ball-bearing slides and plexiglas frontal side.

Temperature range

Setting between -10°C and -25°C. Factory preset to -22°C. Digital adjustable with an increment of 0.1°C.

Refrigeration system

Completely sealed, silent and highly efficient hermetic monobloc compressor and ventilated air condenser (suitable also for tropical countries). Internal ventilated evaporator. Forced-air cooling system conceived to achieve maximum temperature uniformity and stability inside the refrigerator even in case of frequent door openings. Evaporator fan shuts off during door openings. CFC-free R452a refrigerant gas. CFC/HCFC-free R290 refrigerant gas for European countries.

Defrosting

Fully automatic defrosting cycle and auto-evaporation of condensed water.

Capacity

1400 litres

Voltage

230V/50 Hz (on request 230V/60 Hz, 115V/60 Hz)

Absorption

730 Watt

Gas

CFC-free R452a refrigerant gas. CFC/HCFC-free R290 refrigerant gas for European countries.

Control panel and alarms

Available:

LGK-2 digital control panel

https://www.frimed.it/en/control-panel.html#lk-2

TP-1 full touch control panel

https://www.frimed.it/en/control-panel.html#tp-1

Data logger

To record temperatures and alarms. Download data on USB pen drive.

Standard

  • 8 scotch-brite stainless steel shelves.

  • Four one way wheels with stabilizing adjustable feet

  • Door lock with key

  • Power cord with Schüko type plug or British type plug

  • Protection fuses (on power switch and electronic mainboard)

  • RFI filter

  • Password protected power switch and settings

  • Electronic control panel with alarm system

  • Remote contact (dry, volt-free) for alarm

  • Data logger with USB port to download readings and data

  • Memory of latest alarms visible on screen

Optional accessories

  • Scotch-brite stainless steel sliding drawers (max 14) with telescopic ball-bearing slides and Plexiglas frontal side

  • Internal dividers for drawers

  • Additional shelf

  • Smooth shelf with borders

  • Castors with two frontal brakes

  • Weekly temperature chart recorder working with 1,5 V battery, equipped with 52 disks and a pen

  • 12V back-up battery 8LGK-2) or rechargeable batteries (TP-1 full touch)supplying energy to control panel in order to display temperature and generate alarms in case of power failure

  • GSM module to send SMS alarm messages to mobile phones, showing date, time, cabinet temperature and type of alarm (LGK-2)

  • LAN Port to connect the appliance via ethernet on PC to monitor correct functioning (LGK-2)

  • Cloud system (TP-1 full touch)

  • Test hole (Ø 25 mm) fo external user sensor

  • Electric digital key lock (TP-1 full touch)

  • Power supply 115V/60Hz

External dimensions and unit net weight

1400x800x1990 (wxdxh-mm)-kg. 229

Dimensions of packaging and shipping weight

  • carton box on pallet: 1500x900x2170 (wxdxh-mm)-kg. 249

  • wooden crate (option on request): 1600x960x2210 (wxdxh-mm)-kg. 347

Equipment in accordance with:

Low voltage Directive 2014/35/UE, Electromagnetic Compatibility Directive 2014/30/UE

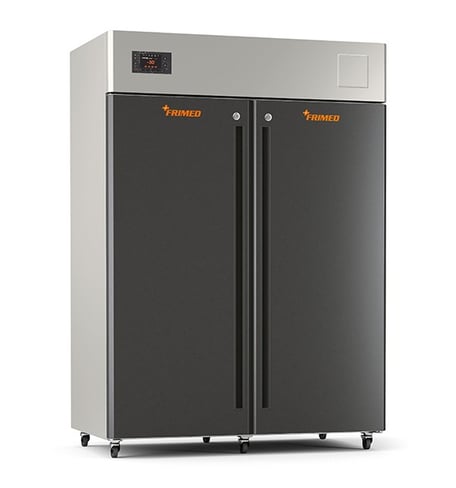

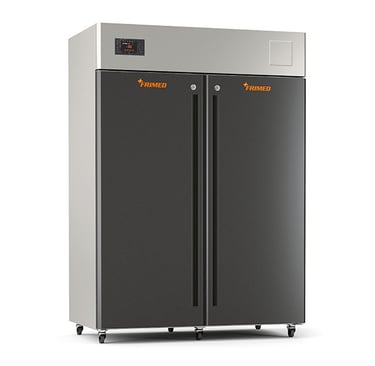

The picture doesn’t necessarily show the product in its standard version.
